Casting system for dosing the melt into the shot sleeve via the suction pipe

  • Closure of the shot sleeve by a patented counter piston

  • Dosing by patented vacuum modules directly on the shot sleeve

  • Patented suction pipe holder for a flexible positioning

  • Closure of the shot sleeve by a patented counter piston

  • Dosing by patented vacuum modules directly on the shot sleeve

  • Patented suction pipe holder for a flexible positioning

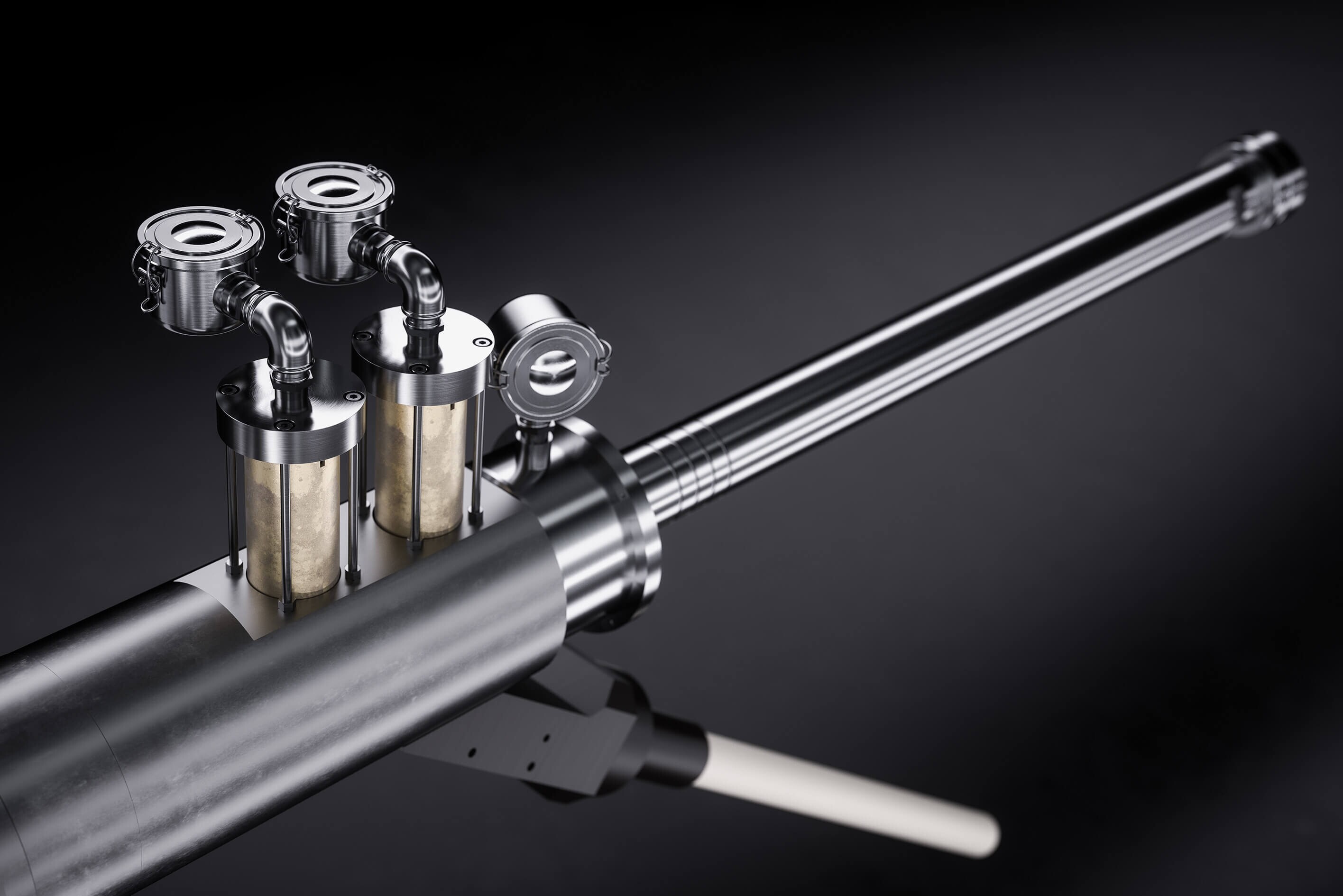

INCAST in detail

Patented
vacuum modules
Vacuum plunger
Patented
counter piston
Patented suction
pipe holder
Suction pipe made of
high performance ceramic

Dosing by vacuum modules

Dosing the melt into the shot sleeve only by vacuum. The standardized modules can be used at different shot sleeve sizes.

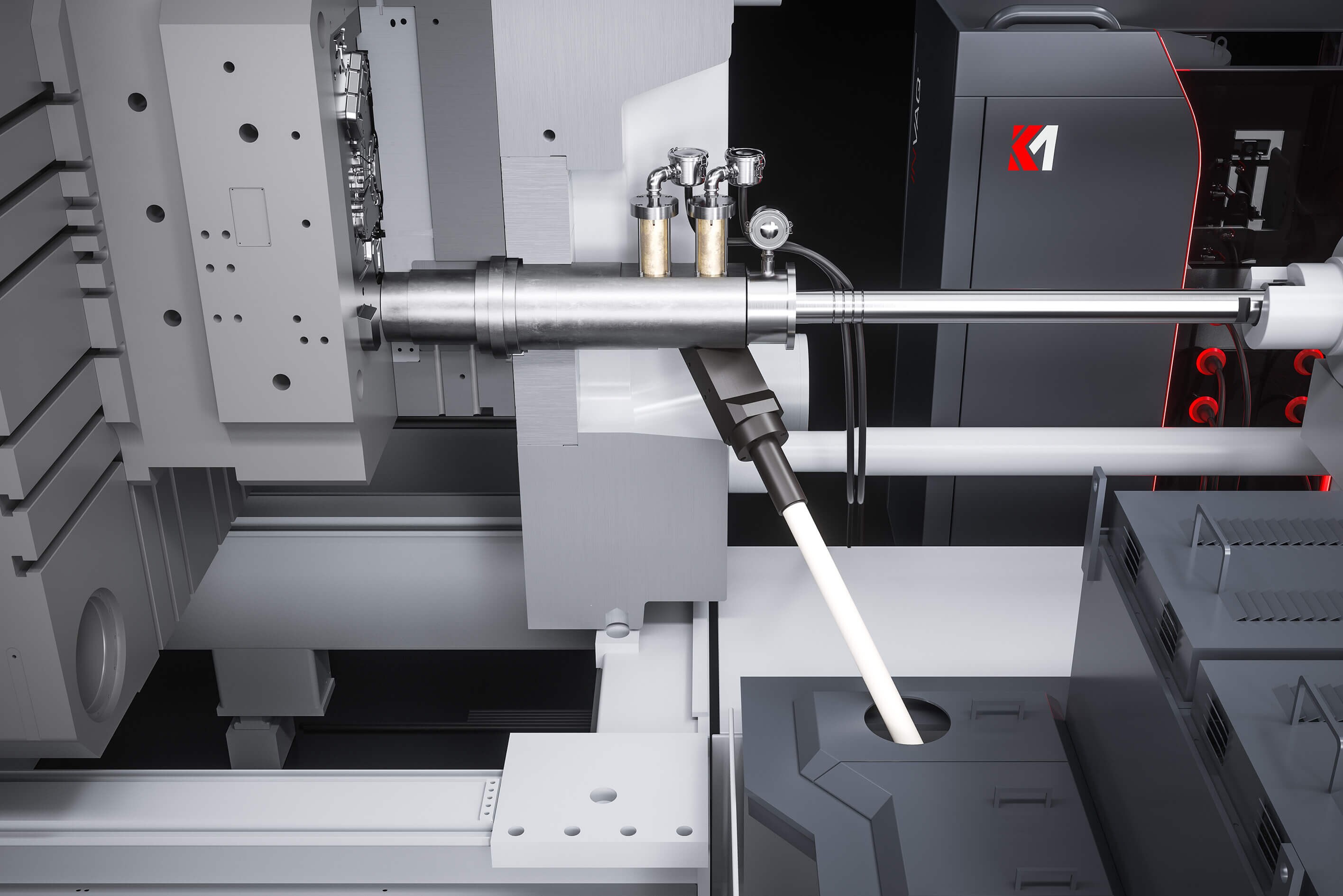

The swivelling
suction pipe

The swivelling suction pipe allows the INHEAT furnace system to be placed on the left or right side directly next to the injection unit, which means that the K1 system can be used on any die casting machine, regardless of the manufacturer.

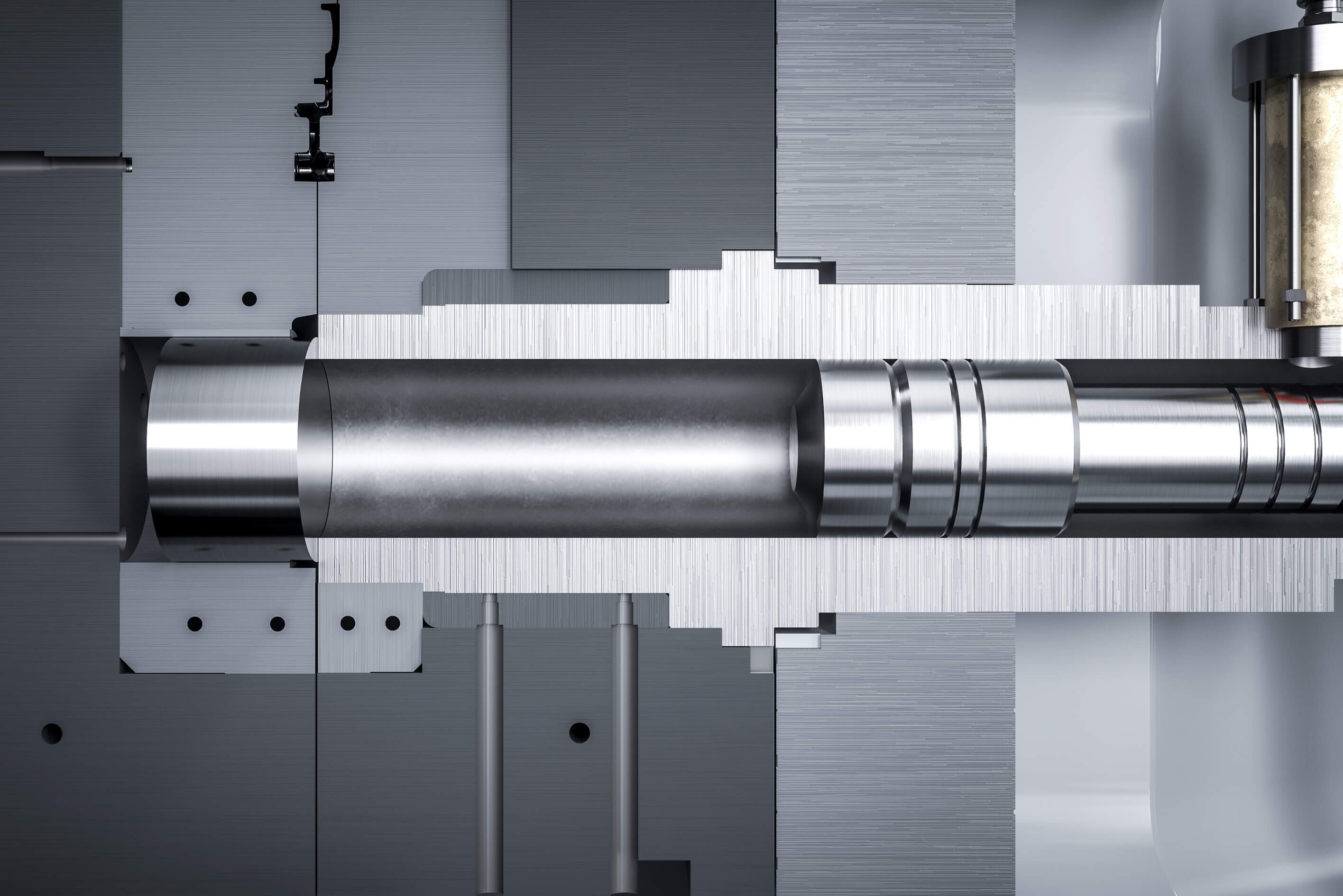

The hermetically
sealed casting system

The shot sleeve is sealed vacuum tight by the hydraulically operated counter piston. This generates a high vacuum in the shot sleeve. Die cavity vacuum seals are not required.
