- 3-chamber furnace with filling, heating and dosing chamber
- Energy-efficient furnace system due to triple special insulation
- Energy-optimized heating and temperature control
- Available as INHEAT 1200, 1800, 2400 and 3000
INHEAT in detail
Heating chamber
Dosing chamber
Pneumatically
operated lifting cover
for filling chamber
operated lifting cover
for filling chamber
Filling chamber

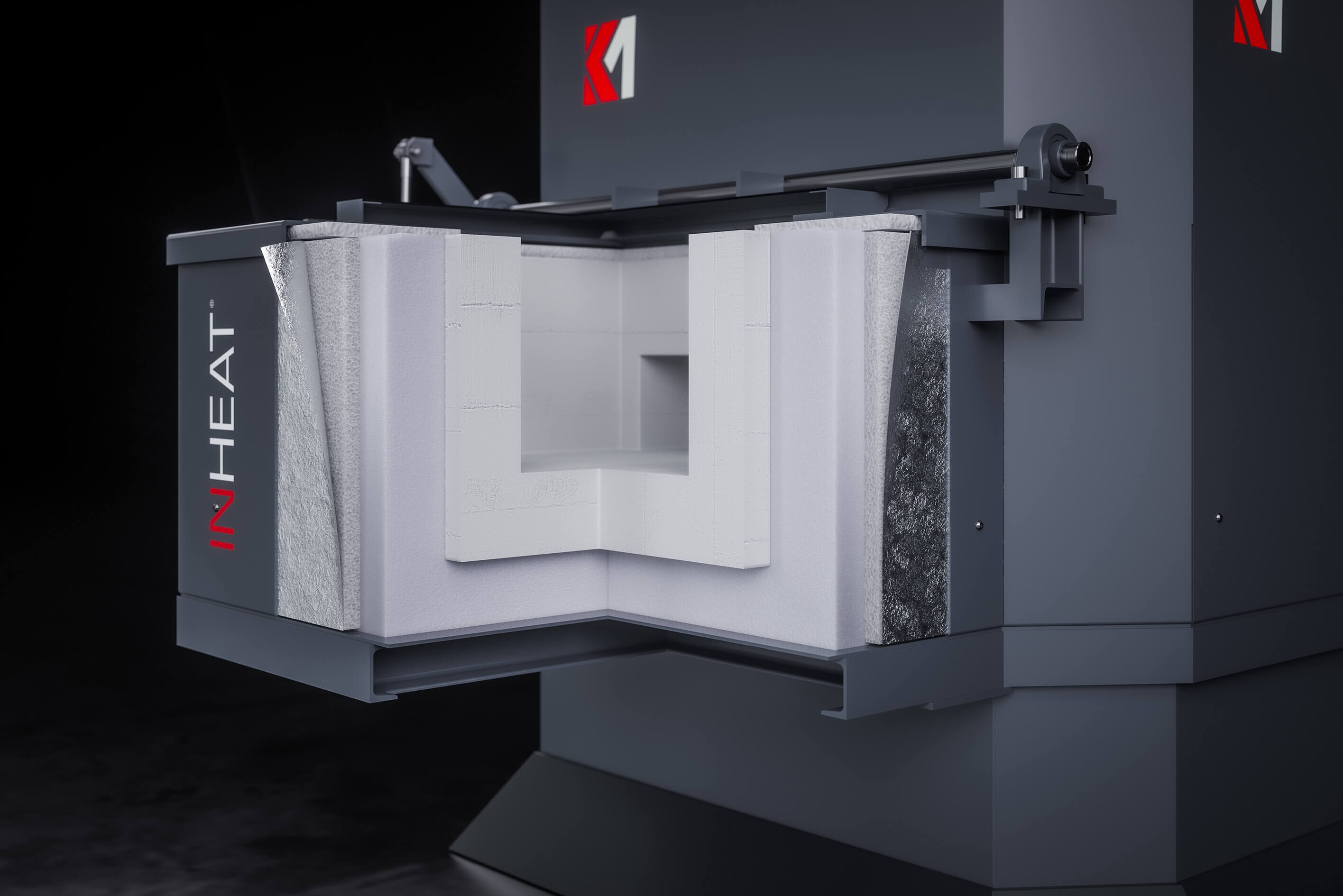

Triple special
insulation
insulation
Energy efficiency in everyday’s foundry life
Due to the triple insulation made of special materials with particularly thick walls, the INHEAT furnace system releases minimal heat to the surroundings.

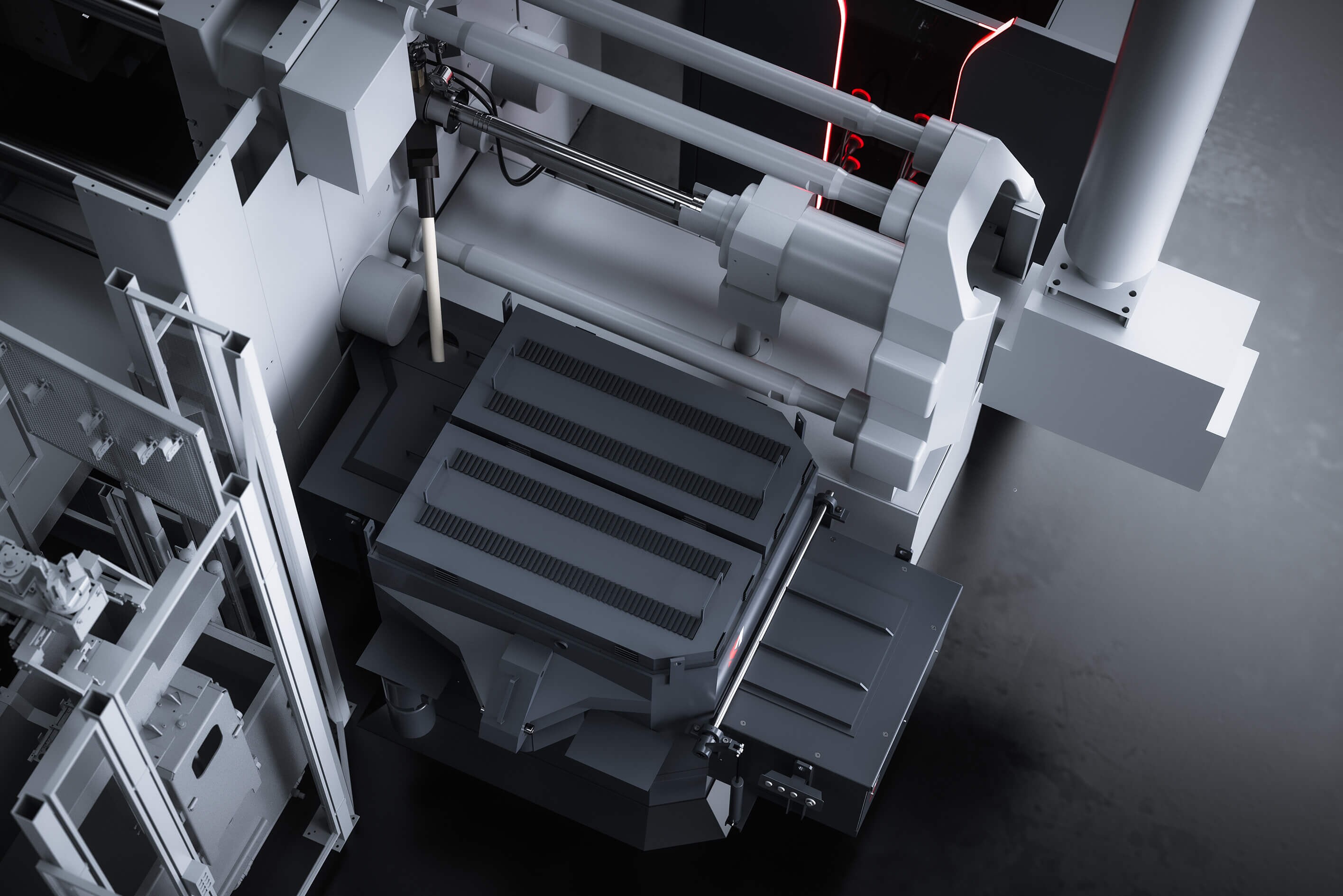

Optimal placement due to special design
Due to the special design of the dosing chamber, the INHEAT furnace system allows it to be placed directly next to the injection unit of the die casting machine.

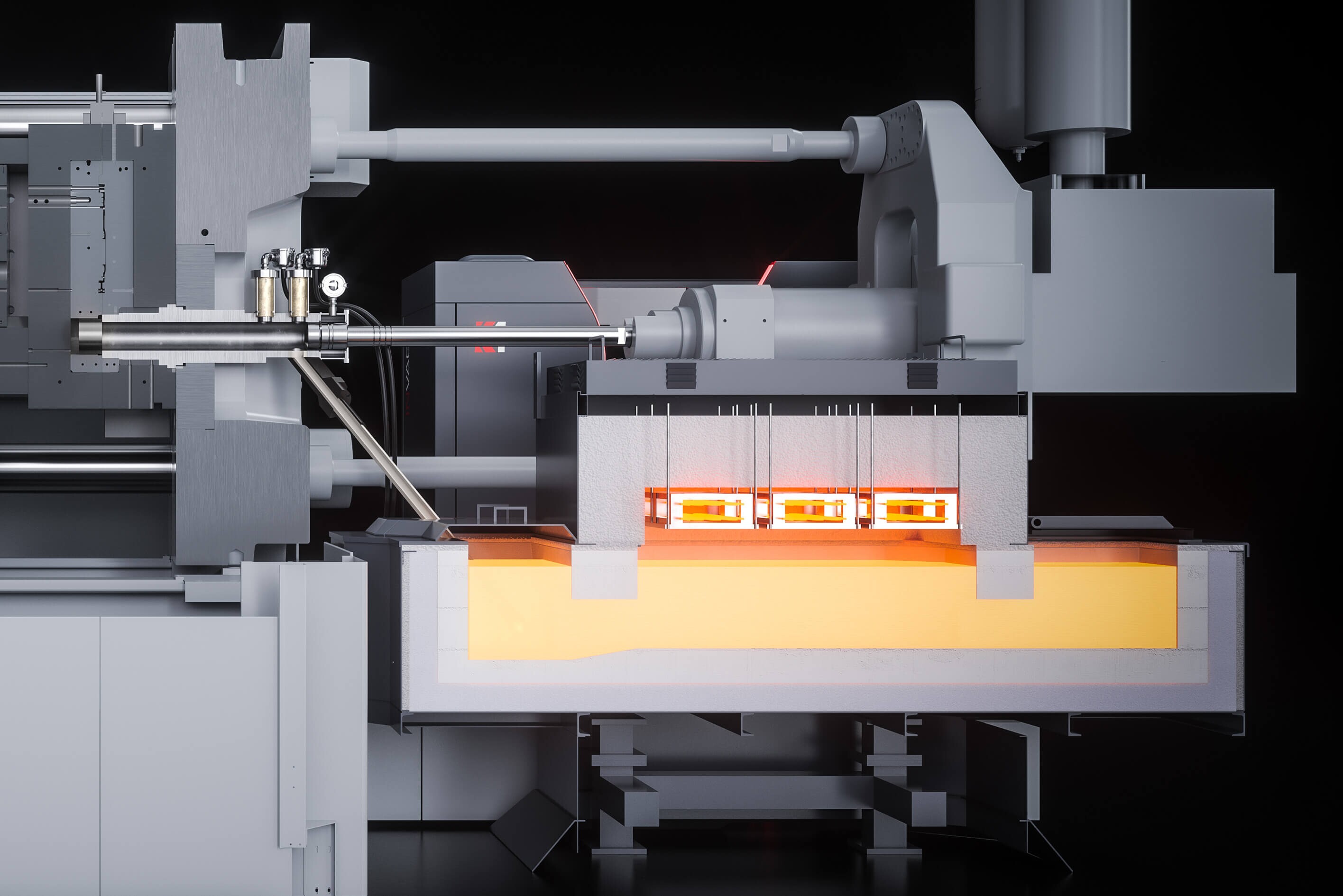

Clean melt by the 3-chamber furnace concept
The 3-chamber furnace concept ensures that the melt flows smoothly into the dosing chamber. The heating chamber is designed with heating registers. Thermocouples in the heating and dosing chambers enable energy-optimized heating and temperature control.
